LR-Vacuum Pump Unit: Reliable Solutions for Thin Film Evaporation

Key Features

High-Performance Design

• Suction capacity: Approx. 100 m³/hr
• Inlet pressure: Approx. 90 mbara
• Discharge pressure: 1.013 mbara
• Installed power: 5.5–7.5 kW

Advanced Technologies

• Single moving part: Rotor and shaft assembly for enhanced reliability
• Lantern pump construction: Supports a wide range of mechanical seal and motor options to meet specialized requirements
• Internal flushing: Ensures smooth operation of single mechanical seals

Safety & Compliance

• CE-marking for industry-standard certification
• Comprehensive documentation, including GA drawings, manuals, and multilingual support
• Optional start-up assistance for seamless integration

Benefits

Operational Efficiency

Engineered for reliability, the LR-Vacuum Pump Unit minimizes unexpected downtimes, ensuring consistent and efficient operation.

Cost Savings

• Energy-efficient design reduces operational costs
• Low maintenance due to robust construction and a single moving part

Longevity and Reliability

• High-quality components extend system life
• Maintenance downtime is limited, delivering long-term value

Technical Specifications

Package Components

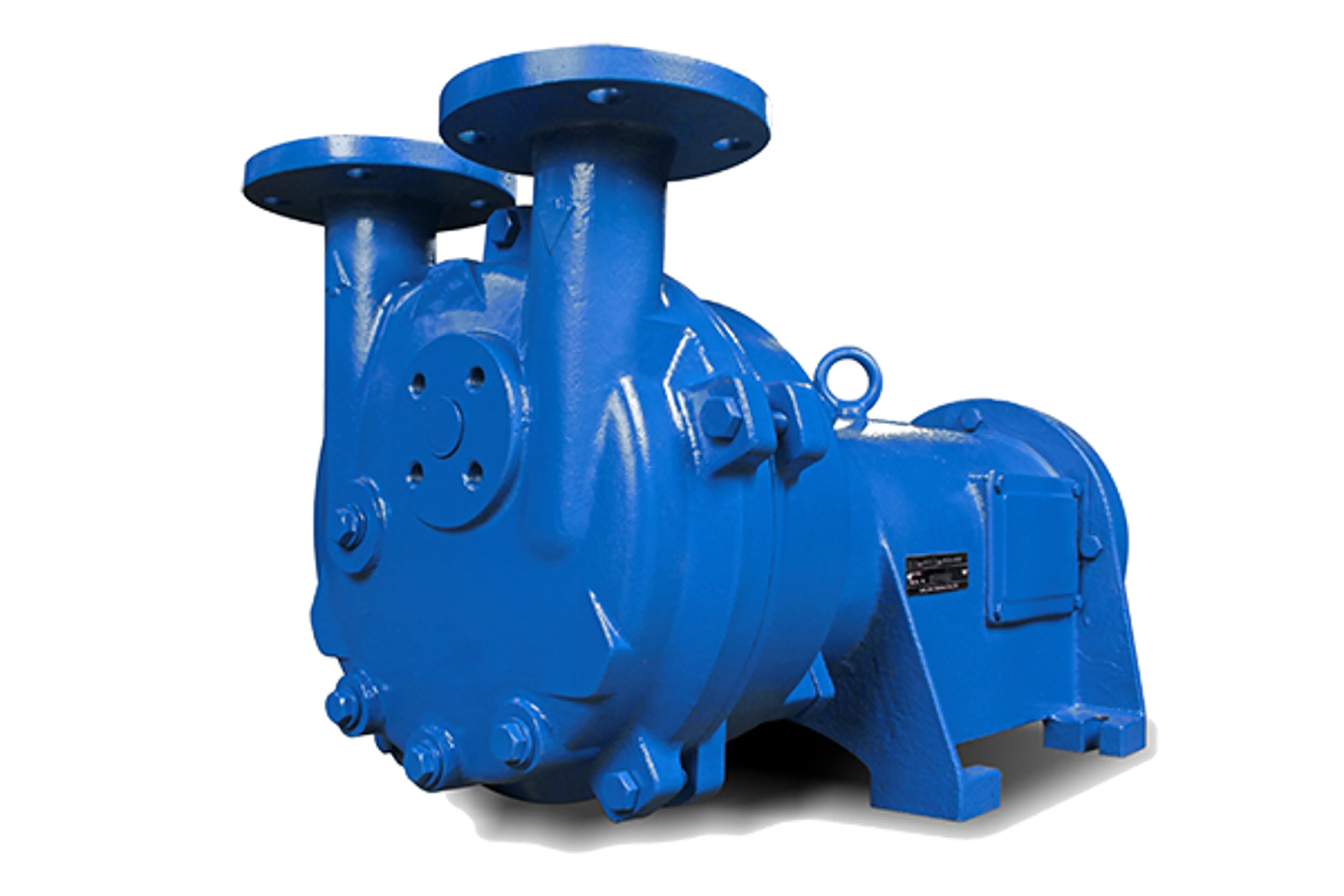

• 2BV6-series vacuum pump with IM B5 motor (direct-coupled)
• Stainless steel separator and heat exchanger
• Internal piping, mounted on a durable carbon steel base frame

Performance Metrics

• Suction capacity: Approx. 100 m³/hr
• Operating temperature: 40–60°C
• Evacuation time can be tailored based on specific requirements

Materials

• Stainless steel construction for all primary components
• Carbon steel base frame for stability and durability

Industry Standards

• Designed to meet rigorous industry and customer-specific certifications
